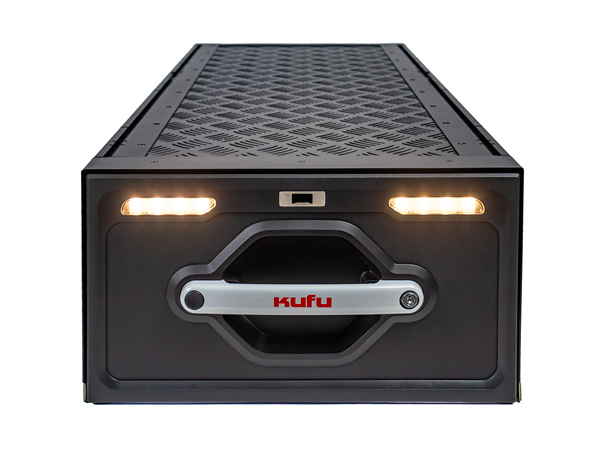

QUICK RELEASE MODULAR DRAWER SYSTEM

The KUFU Drawer System is a versatile, modular vehicle storage solution with Catch-and-Click™ technology. A unique, tool-free catch rear bracket system for fast installation and removal, ensuring adaptability for various vehicle types and user needs.

Designed in Australia for compliance with ADR42/05 and ADR69/00 ensures safety and reliability for recreation, trades, defence, medical, and fleet industries. The universal mounting platform design is compatible with major vehicles (SUV, tray tops + Utility bed trucks), vessels, and aircraft, this all-weather Drawer System leads innovation, is unmatched in strength, features, performance, usability, and adaptability for a seamless user experience.

Modular: Stackable + Interchangeable, unlike any other drawer system, Catch-and-Click™ allows for multiple configurations.

A winner of the Australian Good Design Award 2023 – Trusted Globally, distribution includes USA, Europe, Baltic states, and Scandinavia.

NEVER BE LOCKED IN TO ONE CONFIGURATION, DRAWERS FOR LIFE.

CATCH-AND-CLICK™

Quick + Easy Install and Removal.

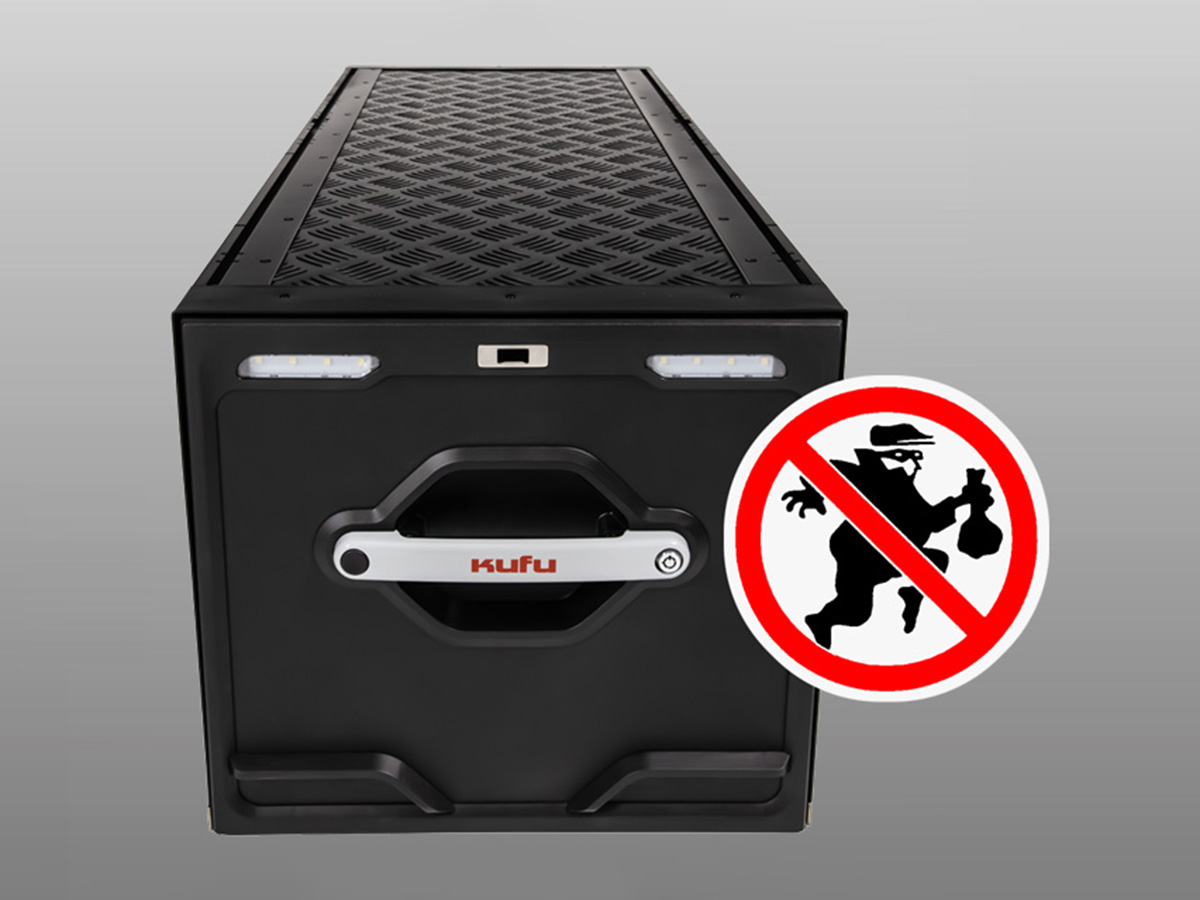

A unique catch rear bracket that intercepts the drawer, then slides and locks with a locking pin at the front. The pin access is only available when the drawer is opened, preventing theft.

LED LIGHTING

Equipped with an automatic fade-out internal LED and switch-controlled external task lights, the drawer system illuminates drawer contents and outdoor surroundings effectively.

MODULAR SOLUTION

As a modular system the drawers offer 6 lengths and 3 height options. With 180mm, 280mm and 460mm high options, the 460mm offers the largest volume on the market and lengths from 750mm to 1700mm – installation possibilies are endless.

WEATHERPROOF + UV STABLE

Truly Sealed: Designed for external use, it features gaskets and venting to shield moving parts from dust + moisture, ensuring durability in harsh conditions. The system can be washed externally with water + soap, ensuring ease of maintenance.

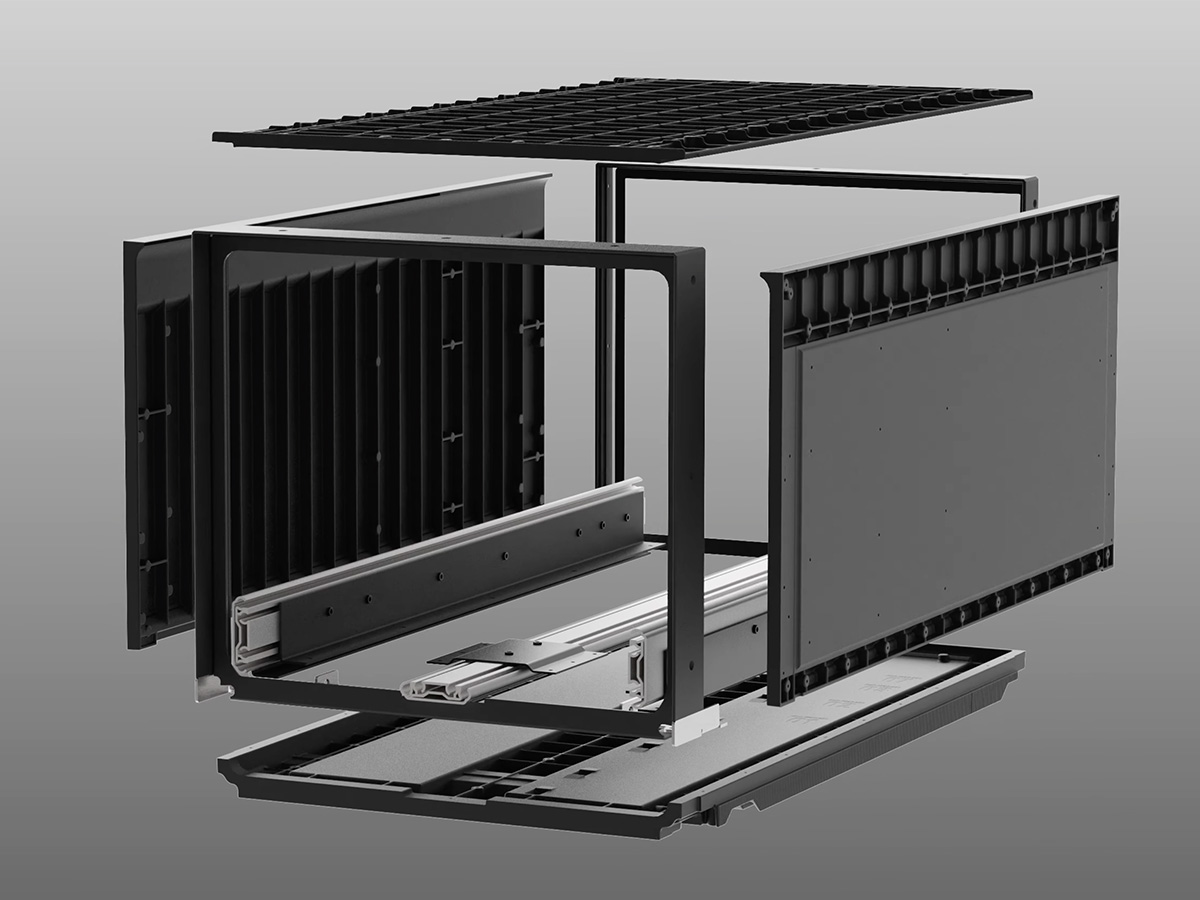

1T TOP LOAD / 150KG PER DRAW

Unmatched load handling capabilities with 1-tonne top capacity and 150kg per drawer – allowing efficient organization and protection of tools or gear, via KUFU patented slide system + robust composite design, made for real-world demands.

Adaptability meets Endurance

Tailored Modular Vehicle Storage Solutions for Every Application

The Kufu system combines a unique compression-moulded design, all-weather sealing, external + internal lighting, and anti-slip surfaces with a robust construction, offering unparalleled strength, adaptability, and security.

Compatible with a variety of major vehicles including SUVs, tray tops, troop carriers, vessels, and aircraft, this Australian-designed system complies with ADR 43/02 safety standards. This ensures a seamless user experience for organising and securing cargo and equipment, and efficient installation for a variety of use cases.

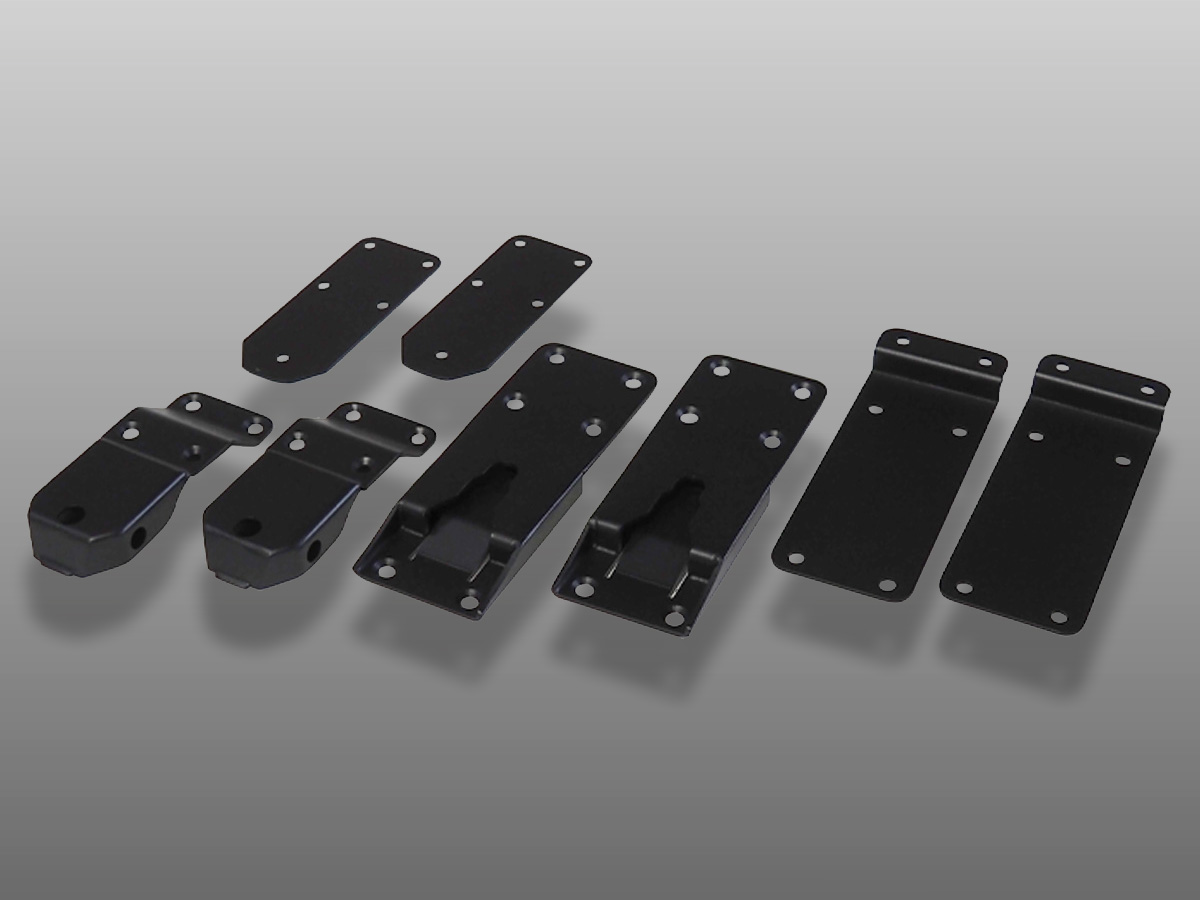

Catch-and-Click™

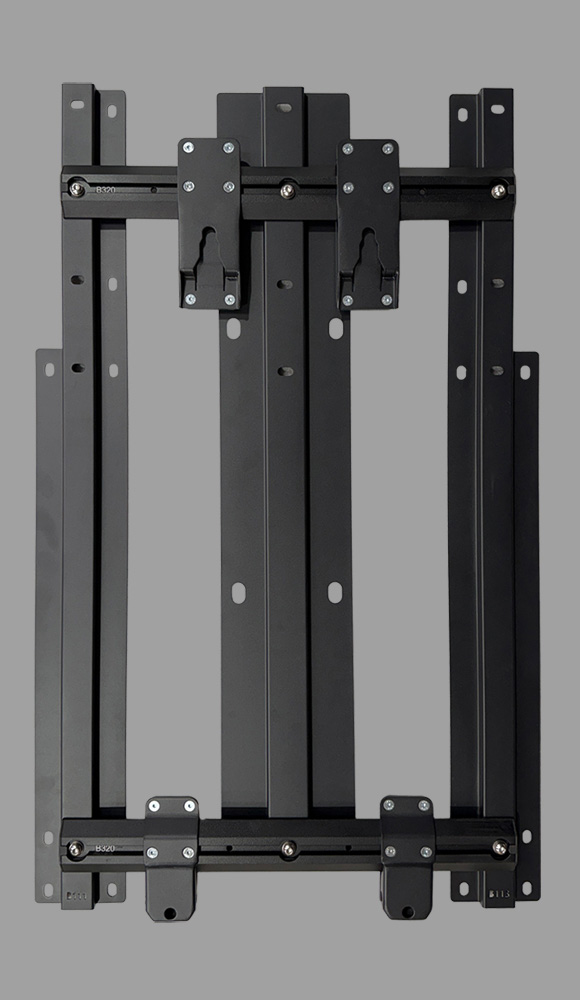

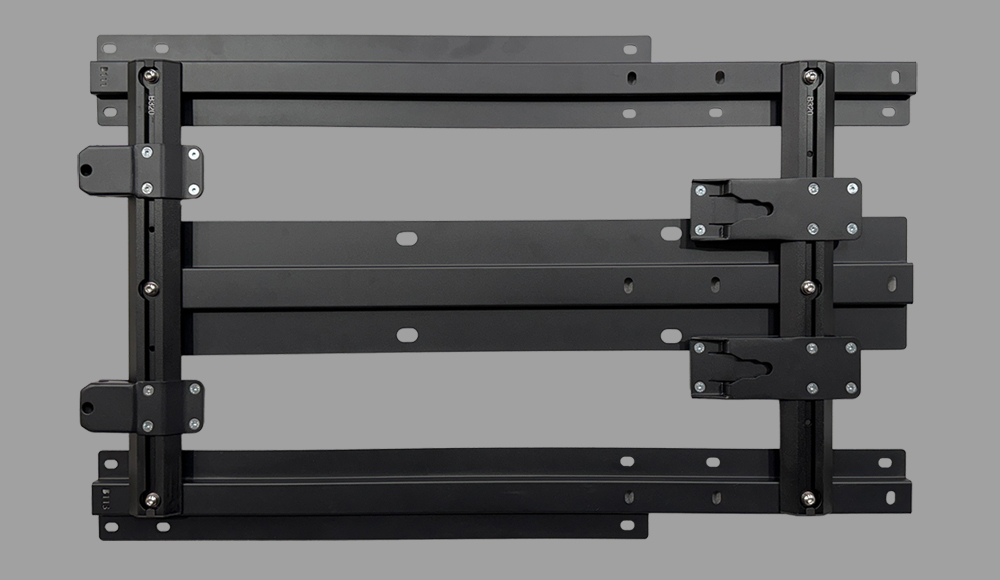

A unique catch rear bracket that intercepts the drawer, then slides and locks with a locking pin at the front. The pin access is only available when the drawer is opened, preventing theft. Offering flexibility whether an SUV or Utility, you can quickly and easily remove the system to allow full use of the rear of the vehicle and refit for touring or work needs, all by hand – No Tools required. (Note: the mounting platform can stay in the vehicle or remove in minutes with a simple ratchet and socket set).

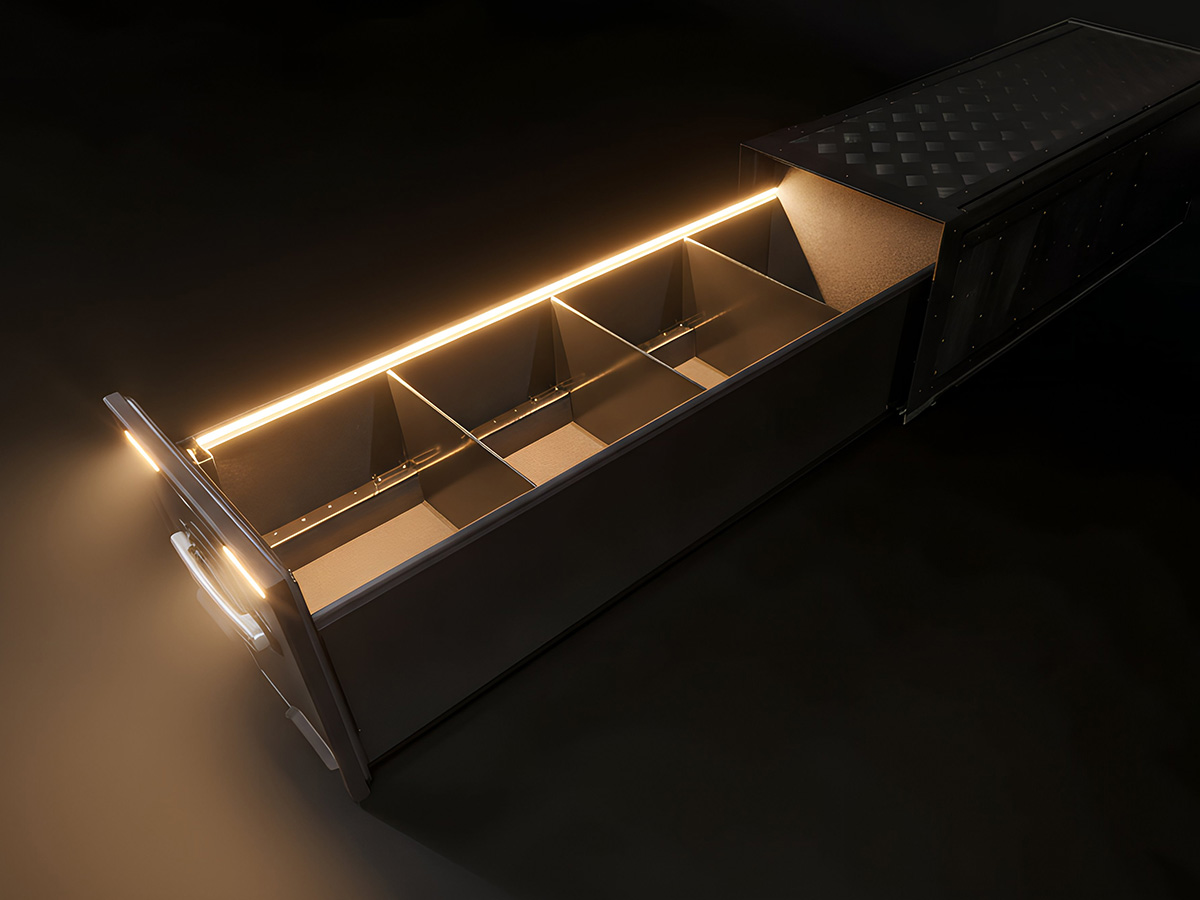

LED lighting

Internal and external LED lighting powered by our own Lithium battery system. Internal lighting is activated the moment you open the drawer and soft fades when closed, offering defused glow it will not blind you and is directed to the contents of the drawer. The external dual high output task lights are controlled by a switch on the drawer front, these provide ample light to light up a camp site for cooking, set up or working on site at night.

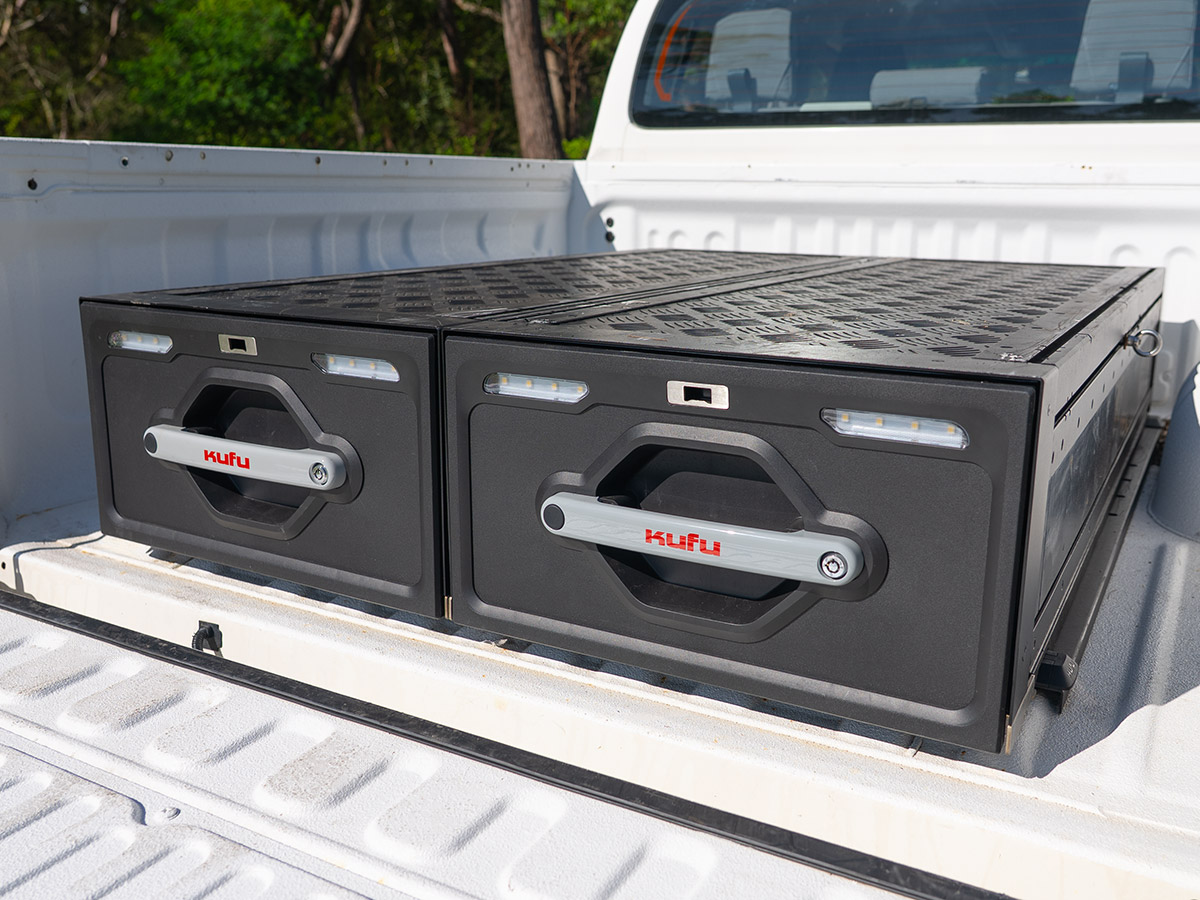

Drawer sizes: More Solutions

As a modular system the drawers offer 6 lengths and 3 height options. With 180mm, 280mm and 460mm high options, the 460mm offers the largest volume on the market and lengths from 750mm to 1700mm – covering more vehicles and able to custom fit to trailers, boats and caravans, the possibilities are endless.

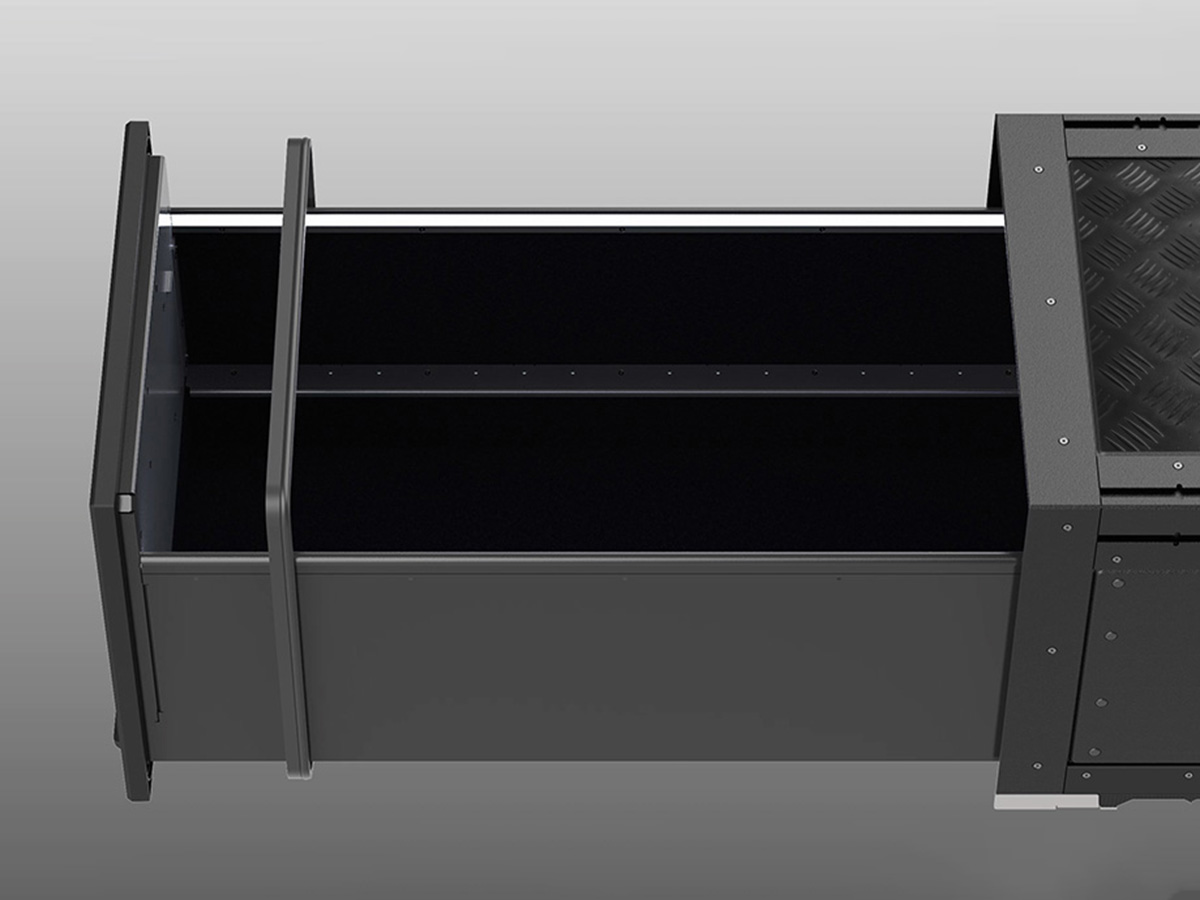

All weather I.P sealed and UV stable

The only drawer system that is truly sealed and can withstand external use. The design features gaskets, seals and venting, all moving components are kept sealed from dust and moisture when closed, which prevents premature wear and failure, can be left outside in our harsh conditions. The system is designed to allow washing with water and soap (hose pressure) to keep clean externally. High pressure blasting the top is fine, however, not recommended for drawer front as this can penetrate gasket seals around the LED task lights and handle.

MASTERING MODULARITY

Bridging the gap between user needs and innovation in vehicle storage

The KUFU Modular Drawer System brings a robust, innovative solution to diverse industries and users. Its triple-slide design maximizes storage, and the patented Catch-and-Click™ system ensures swift installation and removal. Custom extruded aluminium rails and a premium TPE rubber coextruded top sheet combine to create a sleek, utilitarian finish.

This versatile system seamlessly integrates with modern vehicles, maintaining a balance of aesthetic appeal and functionality. User experience is optimized with a quick-release Catch-and-Click™ mechanism, versatile LED lighting, multiple size options, and weather-resistant construction.

Engineered for
Real-World Demands

Designed, Engineered and Assembled in Australia

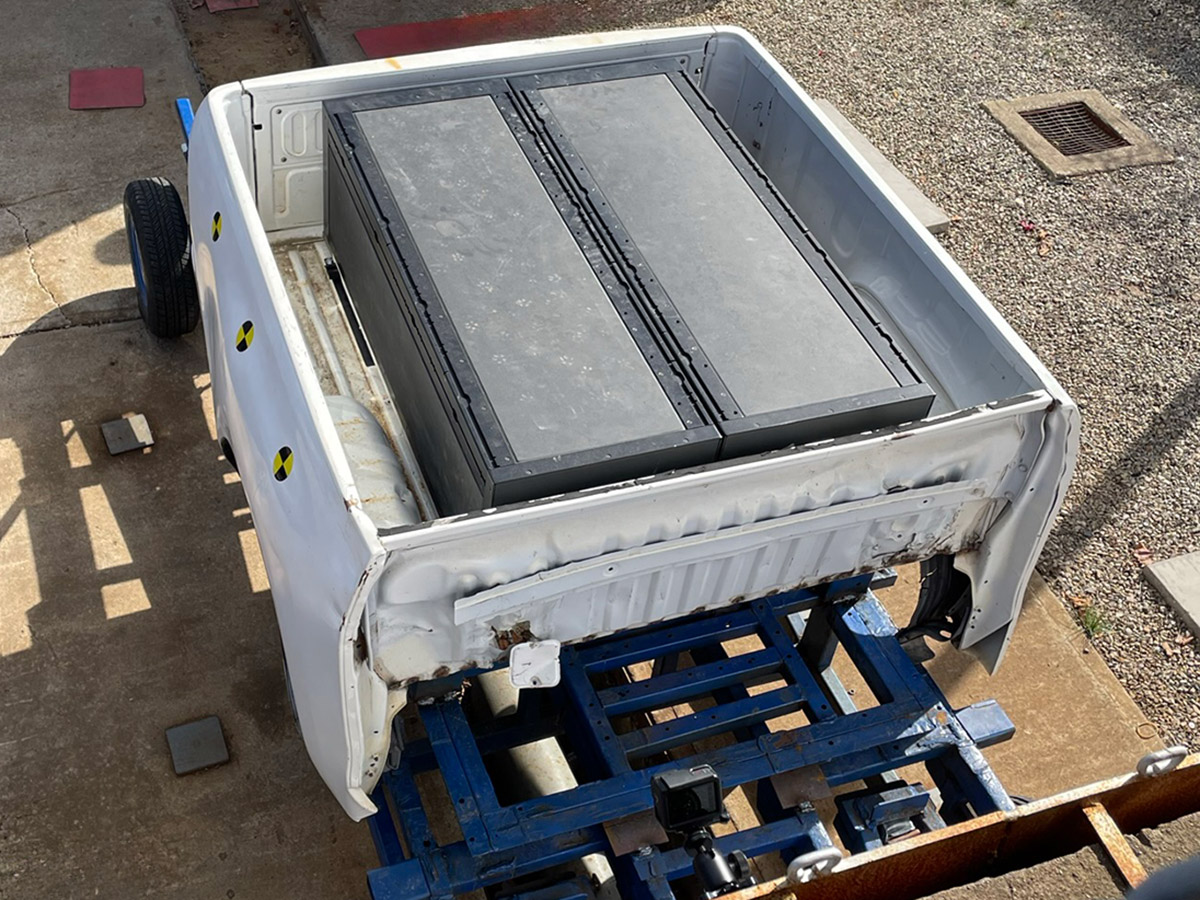

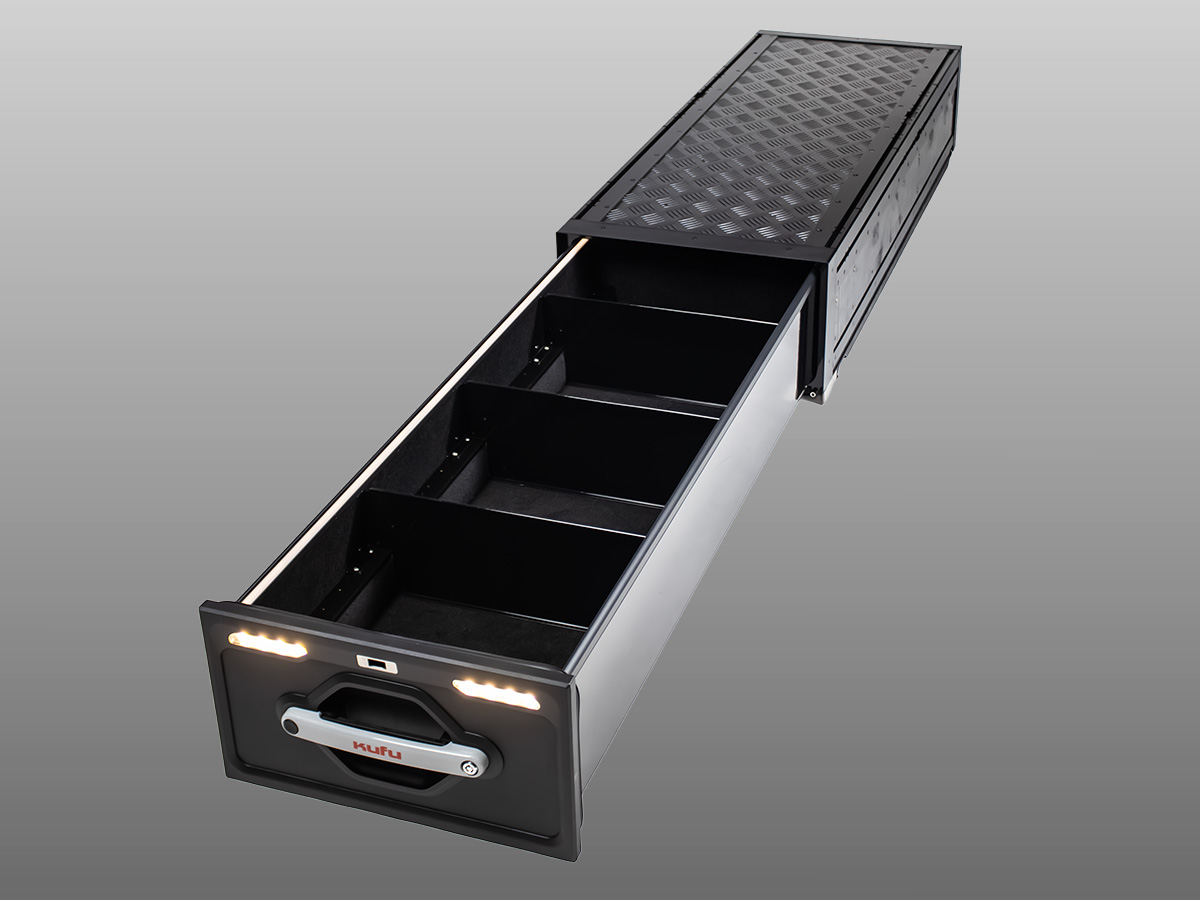

Compliant with ADR42/05 and ADR69/00 safety standards, the crash-tested system has incremental locking points, secure transportation features, and a 1-tonne load rating, delivering stability and reliability. Designed and assembled in Australia, the KUFU Drawer System withstands harsh environments with its high-quality materials and construction. It meets the needs of a wide range of users, from recreation to defence, medical, and fleet industries. The created IP underpins future product line development, affirming the KUFU brand’s innovation and adaptability.

KUFU DRAWER SYSTEM SPECIFICATIONS

  • Internal capacity 150kg
  • External Load Capacity : 330kg/sqm
  • Outer Width: 510mm
  • Inner Width: 455mm, Lower 373mm
Outer Height
180mm (110mm Inner) 280mm (210mm Inner) 460mm (390mm Inner)
Outer Depth 950mm 39L, 45kg 80L, 50kg 153L, 59kg
1400mm 60L, 65kg 120L, 70kg 230L, 80kg
1700mm 72L (Coming Soon) 150L (Coming Soon) 282L (Coming Soon)
